USE QUARTUS TO WRITE THE CODE.

1- Objective
The objective is to use algorithmic state machine integrated (ASM) with a Datapath to
design circuit that outputs the maximum length of equal ones and zeros in a number.
2- circuit
It is circuit which counts the maximum length of equal zeros and ones.

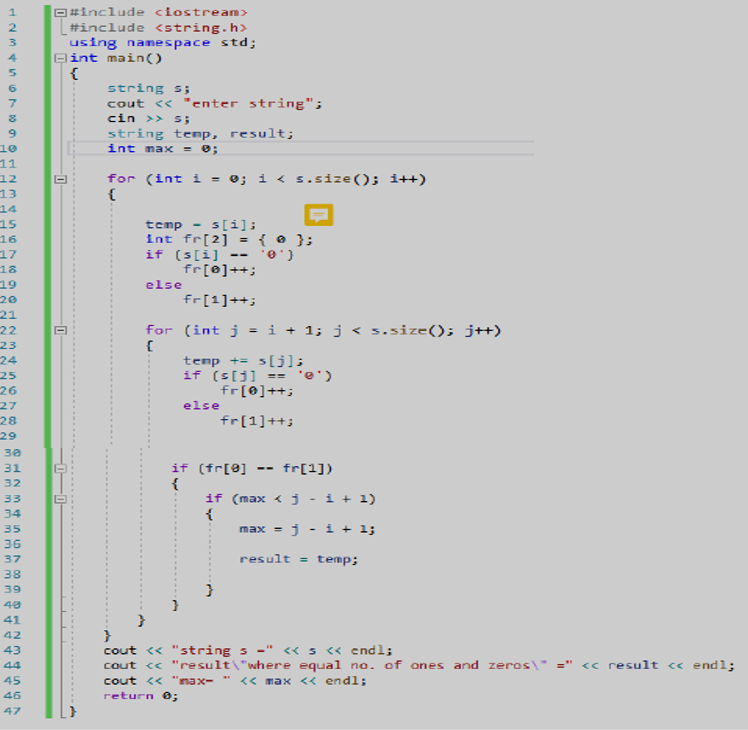

2.1 C++ Code

NOTE: TEMP is not required. (Line 15)

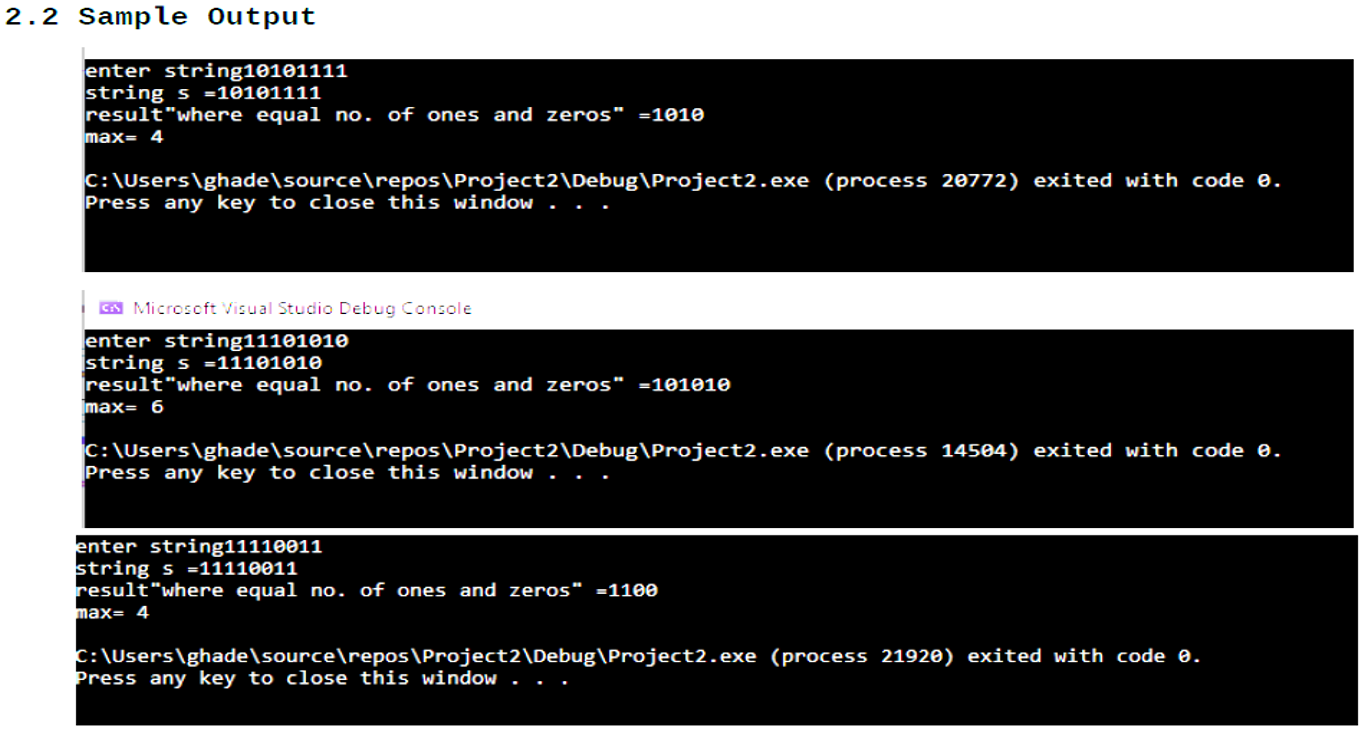

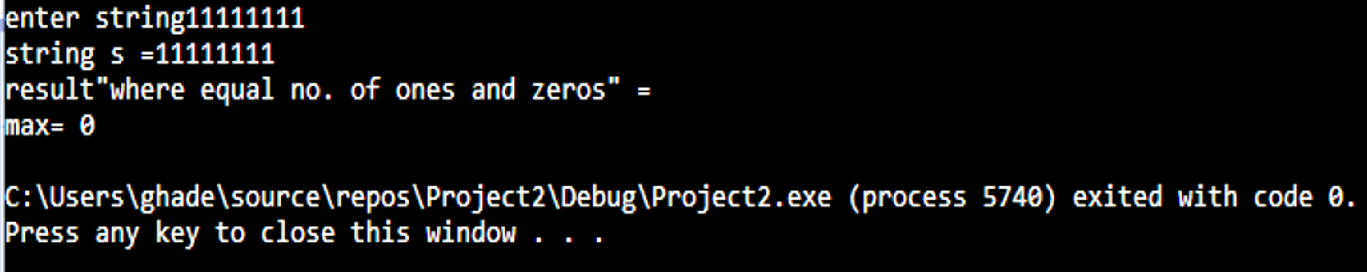

2.2- Sample Output

3- Required Tasks
3.1- Datapath ASM
Design Algorithmic state machine (ASM) for Datapath.
3.2- Datapath circuit
Design circuit for Datapath based on the ASM you designed in 3.1.
3.3- Controller ASM
Design Algorithmic state machine (ASM) for Controller.
3.4- Coding
Implement using VHDL the controller and the Datapath.

Show transcribed image text

Expert Answer

Was this answer helpful?

---

General guidance

The answer provided below has been developed in a clear step by step manner.

Show more

FIRST STEP | ALL STEPS | ANSWER ONLY

Step-by-step

Step 1 of 1

#include <iostream>
#include <string.h>
using namespace std;

int main()
{
    //cout<<"Hello World";
    string s;
    cout << "enter string";
    cin >> s;
    string temp,result;
    int max=0;
    for(int i=0;i<s.size();i++){
        temp=s[i];
        int fr[2]={ 0 };
        if(s[i] == '0') fr[0]++;
        else fr[1]++;
        for(int j=i+1;j<s.size();j++){
            temp+=s[j];
            if(s[j] == '0') fr[0]++;
            else fr[1]++;

            if(fr[0] ==  fr[1]){
                if(max < j- i + 1){
                    max=j-i+1;
                    result=temp;
                }
            }
        }
    }
    cout<< "string s =" << s <<endl;
    cout<< "result where equal no. of ones and zeros " << result << endl;
    cout<<"max" << max << endl;

    return 0;
}

​output for the above program:

enter stringhelo102

string s =helo102

result where equal no. of ones and zeros 10

max2

Explanation

Please refer to solution in this step.
