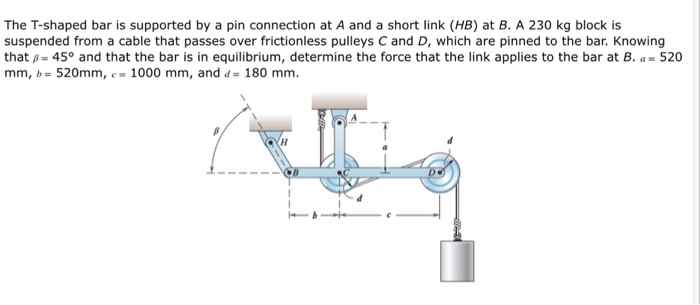

The T-shaped bar is supported by a pin connection at A and a short link (HB) at B. A 230 kg block is suspended from a cable that passes over frictionless pulleys C and D, which are pinned to the bar. Knowing that p 45° and that the bar is in equilibrium, determine the force that the link applies to the bar at B. a 520 mm, b 520mm c 1000 mm, and d 180 mm. b

Can someone help me please.
